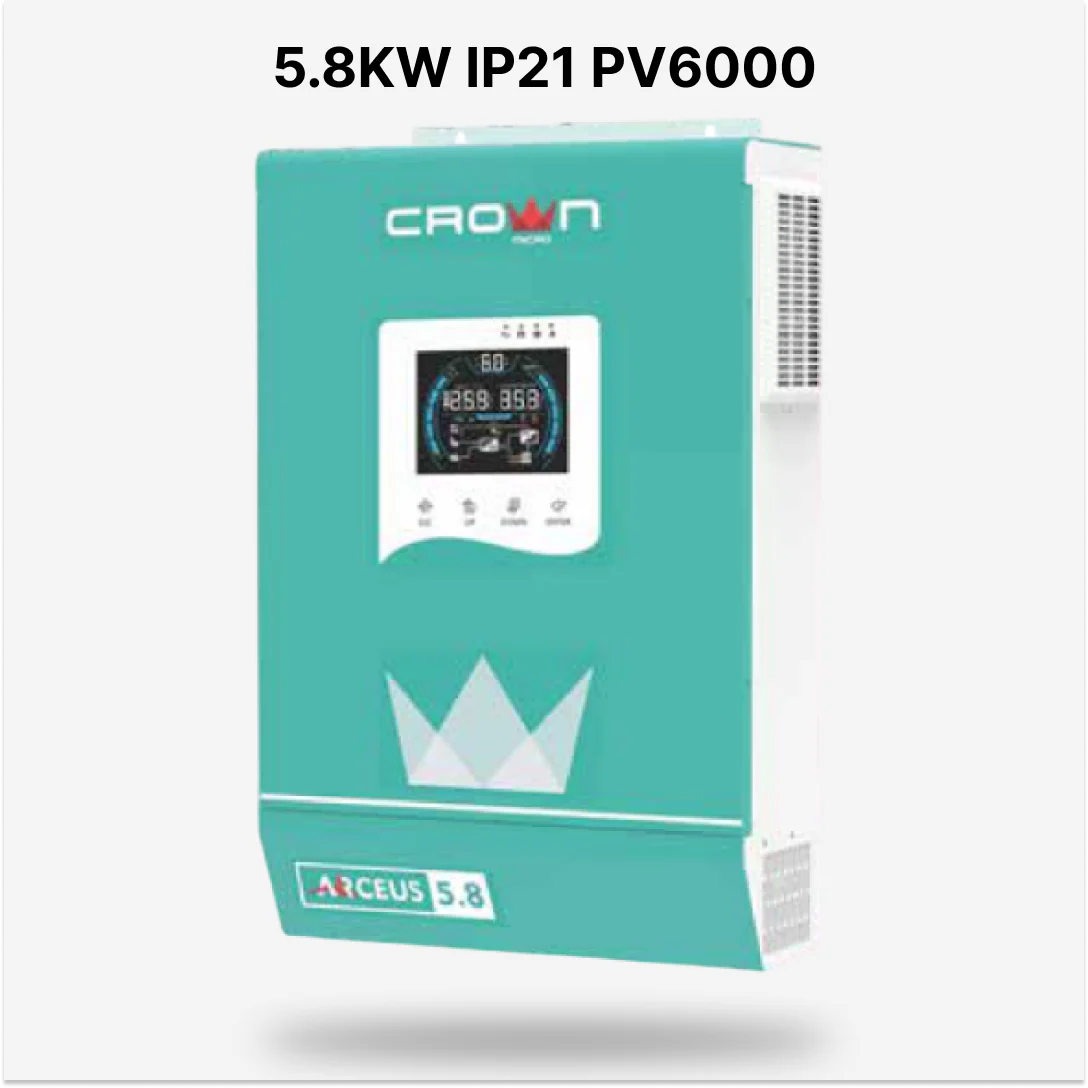

The Arceus 5.8KW IP21 is a high-performance hybrid solar inverter that offers efficient power management, advanced MPPT solar technology, and versatile energy solutions for residential and commercial applications.
Key Features:
Pure Sine Wave Technology: Ensures stable power for sensitive appliances.
Advanced MPPT Solar Technology: Maximizes solar energy harvesting for optimal efficiency.
Output Power Factor 1.0: Delivers full utilization of the inverter’s power output.
Battery Independent Design: Operates seamlessly without a battery, reducing setup costs.
Compatible with AC Mains or Generators: Flexible energy source integration for uninterrupted supply.
5-Inch LCD Display: Provides detailed and user-friendly operational information.
Wi-Fi Module Included: Enables remote monitoring and control via smartphone or PC.
Parallel Connection Capability: Supports parallel operation of up to 9 units (optional), ideal for scaling energy needs.
Auto Restart Functionality: Automatically resumes operation when AC power is restored.
Configurable AC/Solar Input Priority: Allows customization based on energy needs via the LCD settings.
Selectable Input Voltage Range: Optimized for home appliances and personal computer loads.
Why Choose Arceus 5.8KW IP21?
Versatility and Scalability: Designed to adapt to various energy demands with parallel operation and flexible input options.
Energy Independence: Reduces dependency on the grid, providing reliable backup and cost savings.
Comprehensive Features: Packed with advanced functionalities to ensure durability and efficiency in all environments.
CoreTech 6.2kW IP21 Hybrid Solar Inverter
| AC over-current protection | Yes |
|---|---|
| AC over-voltage protection | Yes |
| AC short-circuit protection | Yes |
| AC surge protection 3 | Yes |
| Adjustable power factor | >0.99 |
| Anti-islanding protection | Yes |
| Arc fault protection | Yes |
| Communication | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (optional); 4G / 3G / 2G via Smart Dongle-4G (optional) |
| Cooling | Natural Convection |
| DC reverse-polarity | Yes |
| DC surge protection | Type II |
| Degree of protection | IP65 |
| Display | LED Indicators |
| Grid connection | Three phase |
| Input-side disconnection | Yes |
| Max. efficiency | 96.65% |
| Max.harmonic distortion | ≤ 3 % |
| Max. input current per MPPT | 1 tracker / 27A input current |
| Max. input voltage 1 | 120–140VAC |
| Max. number of inputs | 4 |
| Max. operating altitude | 0 – 4,000 m (13,123 ft.) (Derating above 2000 m) |
| Max. short-circuit current | 30 A |
| Night Time Power Consumption | < 5.5 W |
| Number of MPP trackers | 2 |
| Operating voltage range 2 | 160 V ~ 950 V |
| Operation temperature range | -25 ~ + 60 °C (-13 °F ~ 140 °F) (Derating above 45 °C @ Rated output power) |
| Rated input voltage | 48VDC |
| Rated output voltage | 220/230/240VAC (Selectable) |
| Residual current monitoring | Yes |
| Ripple receiver control | Yes |
| Start voltage | 120–140VAC |
Huawei2000 -17KTL-M0
| AC over-current protection | Yes |
|---|---|
| AC short-circuit protection | Yes |
| AC over-voltage protection | Yes |
| AC surge protection 3 | Yes |
| Adjustable power factor | 0.8 leading … 0.8 lagging |
| Anti-islanding protection | Yes |
| Arc fault protection | Yes |
| Communication | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (optional); 4G / 3G / 2G via Smart Dongle-4G (optional) |
| Cooling | Natural Convection |
| DC reverse-polarity | Yes |
| DC surge protection | Type II |
| Degree of protection | IP65 |
| Display | LED Indicators |
| Grid connection | Three phase |
| Input-side disconnection | Yes |
| Max. efficiency | 96.65% |
| Max.harmonic distortion | ≤ 3 % |
| Max. input current per MPPT | 22 A |
| Max. input voltage 1 | 1,080 V |
| Max. number of inputs | 4 |
| Max. operating altitude | 0 – 4,000 m (13,123 ft.) (Derating above 2000 m) |
| Max. output current | 28.5 A |
| Max. short-circuit current | 30 A |
| Night Time Power Consumption | < 5.5 W |
| Number of MPP trackers | 2 |
| Operating voltage range 2 | 160 V ~ 950 V |
| Operation temperature range | -25 ~ + 60 °C (-13 °F ~ 140 °F) (Derating above 45 °C @ Rated output power) |
| Rated input voltage | 600 V |
| Rated output power | 17,000 W |
| Rated output voltage | 220 Vac / 380 Vac, 230 Vac / 400 Vac , default 3W / N+PE ; 3W+PE |
| Residual current monitoring | Yes |
| Ripple receiver control | Yes |
| Start voltage | 200 V |
Huawei2000 -20KTL-M0
| AC over-current protection | Yes |
|---|---|
| AC over-voltage protection | Yes |
| AC short-circuit protection | Yes |
| AC surge protection 3 | Yes |
| Adjustable power factor | 0.8 leading … 0.8 lagging |
| Anti-islanding protection | Yes |
| Arc fault protection | Yes |
| Communication | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (optional); 4G / 3G / 2G via Smart Dongle-4G (optional) |
| Cooling | Natural Convection |
| DC reverse-polarity | Yes |
| DC surge protection | Type II |
| Degree of protection | IP65 |
| Display | LED Indicators |
| Grid connection | Three phase |
| Input-side disconnection | Yes |
| Max. efficiency | 95.65% |
| Max.harmonic distortion | ≤ 3 % |
| Max. input current per MPPT | 22 A |
| Max. input voltage 1 | 1,080 V |
| Max. number of inputs | 4 |
| Max. operating altitude | 0 – 4,000 m (13,123 ft.) (Derating above 2000 m) |
| Max. output current | 33.5 A |
| Max. short-circuit current | 30 A |
| Night Time Power Consumption | < 5.5 W |
| Number of MPP trackers | 2 |
| Operating voltage range 2 | 160 V ~ 950 V |
| Operation temperature range | -25 ~ + 60 °C (-13 °F ~ 140 °F) (Derating above 45 °C @ Rated output power) |
| Rated input voltage | 600 V |
| Rated output power | 20,000 W |
| Rated output voltage | 220 Vac / 380 Vac, 230 Vac / 400 Vac , default 3W / N+PE ; 3W+PE |
| Residual current monitoring | Yes |
| Ripple receiver control | Yes |
| Start voltage | 200 V |
Canadian 10kw On Grid Solar Inverter
| AC over-current protection | Yes |
|---|---|
| AC over-voltage protection | Yes |
| AC short-circuit protection | Yes |
| AC surge protection 3 | Yes |
| Adjustable power factor | 10,000W |
| Anti-islanding protection | Yes |
| Arc fault protection | Yes |
| Communication | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (optional); 4G / 3G / 2G via Smart Dongle-4G (optional) |
| Cooling | Smart Fan |
| DC reverse-polarity | Yes |
| DC surge protection | Type II |
| Degree of protection | IP65 |
| Display | LED Indicators |
| Grid connection | Three phase |
| Input-side disconnection | Yes |
| Max. efficiency | Up to 98.2% |
| Max.harmonic distortion | ≤ 3 % |
| Max. input current per MPPT | 2 MPPT |
| Max. input voltage 1 | 1000 V |
| Max. number of inputs | 4 |
| Max. operating altitude | 0 – 4,000 m (13,123 ft.) (Derating above 2000 m) |
| Max. short-circuit current | 30 A |
| Night Time Power Consumption | < 5.5 W |
| Number of MPP trackers | 2 |
| Operating voltage range 2 | 160 V ~ 950 V |
| Operation temperature range | -25 ~ + 60 °C (-13 °F ~ 140 °F) (Derating above 45 °C @ Rated output power) |
| Rated input voltage | 10,000W |
| Rated output power | 100A |
| Rated output voltage | 230 / 400V |
| Residual current monitoring | Yes |
| Ripple receiver control | Yes |
| Start voltage | 200 V |
189 in stock
Ring Stick Up Cam Battery
Original price was: ₨ 160.₨ 130Current price is: ₨ 130.
Huawei2000 -12KTL-M0
₨ 12| AC over-current protection | Yes |
|---|---|
| AC short-circuit protection | Yes |
| AC surge protection 3 | Yes |
| Adjustable power factor | 0.8 leading … 0.8 lagging |
| Max. efficiency | 95.65% |
| Anti-islanding protection | Yes |
| Arc fault protection | Yes |
| Max.harmonic distortion | ≤ 3 % |
| DC surge protection | Type II |
| Communication | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (optional); 4G / 3G / 2G via Smart Dongle-4G (optional) |
| Night Time Power Consumption | < 5.5 W |
| Degree of protection | IP65 |
| Display | LED Indicators |
| Cooling | Natural Convection |
| DC reverse-polarity | Yes |
| Grid connection | Three phase |
| Input-side disconnection | Yes |
| Max. input current per MPPT | 22 A |
| Max. input voltage 1 | 1,080 V |
| Max. number of inputs | 4 |
| Max. operating altitude | 0 – 4,000 m (13,123 ft.) (Derating above 2000 m) |
| Number of MPP trackers | 2 |
| Operating voltage range 2 | 160 V ~ 950 V |
| Max. output current | 20 A |
| Max. short-circuit current | 30 A |
| Operation temperature range | -25 ~ + 60 °C (-13 °F ~ 140 °F) (Derating above 45 °C @ Rated output power) |
| Rated input voltage | 600 V |
| Rated output power | 12,000 W |
| Rated output voltage | 220 Vac / 380 Vac, 230 Vac / 400 Vac , default 3W / N+PE ; 3W+PE |
| Residual current monitoring | Yes |
| Ripple receiver control | Yes |
| Start voltage | 200 V |
